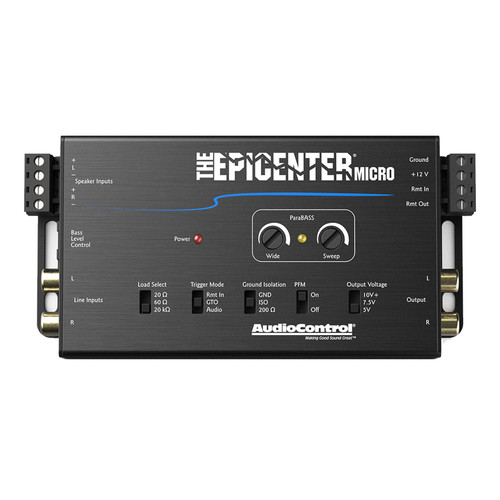

AudioControl the Epicenter Micro Bass Restoration Processor & Line Output Converter

The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The Epicenter Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to indepenently adjust bass restoration and output level.

General Features:

• Patented Digital Bass Restoration
• ParaBASS Bass Shaping
• Speaker and Line Level Inputs
• Load Matching Circuit
• Multiple Trigger Modes
• ACR-4 Dual Knob Dash Mount Control Included
• Speaker Level Input: 1 (2 channels)
• Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
• Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
• Line Level Input: 1 (2 channels)
• Line Level Input Impedance: 7kΩ
• Preamp Outputs: 1 (2 channels)
• Maximum Output Level: 9.5Vrms/13V peak
• Output Impedance: 150Ω
• Total Harmonic Distortion: 0.03%
• Signal to Noise: >105 dB
• Frequency Response: 10 Hz – 22 kHz ±1 dB
• Remote In / GTO Signal Sense / Audio Sense
• 12VDC Remote Out (always active when unit is on)
• Current Draw: 300 mA
• Recommended Fuse Rating: 1 A
• Dimensions: 5.9″L x 3″D x 1″H
• Weight: 0.6 lbs. (0.27 kg)
