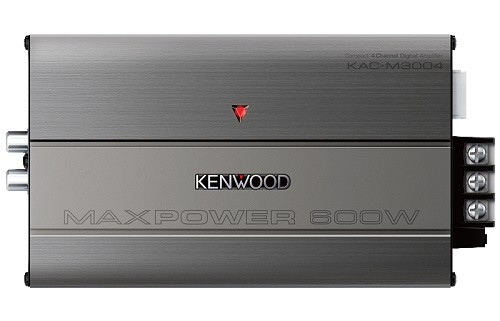

Kenwood KCA-M3004 Amplifier 4 Channel 400W (R-KWDKCAM3004)

Kenwood KCA-M3004 Amplifier 4 Channel 400W

Kenwood 4 Channel 400w Amplifier

Model: KAC-M3004
UPC: 019048210302

• Max Power 600w
• Conformal Coated
• Speaker level input
• Class D
• Variable Low-pass, High-Pass Filter
• Signal Sensing Turn-on

Specifications

CEA-2006 Primary Ratings
power output	50 Watts RMS x 4 at 4 Ohms and ?1%THD+N
Signal-to-noise ratio	76dBA (Reference: 1Watt into 4Ohms)
Specifications
Maximum Power output	600w
Signal to Noise ratio	89dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency response	20Hz-20kHz (+0dB, -1dB)
Input impedance	10k ohm
Speaker impedance	4? (2? to 8? allowable)
bridged connection	4? to 8? allowable
Low-Pass filter	Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct)
High-Pass filter	Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct)
Filter selector 1	LPF-OFF-HPF
RCA input sensitivity	0.2 V - 5.0 V
Speaker level input sensitivity	4.0 V - 12.0 V
Terminals
Battery & Ground	Screw Type Terminal Block (Ni) (M4)
Speaker Output	MOLEX Connector with AWG16 200mm Wire
Line	RCA (Ni)
Input Voltage	14.4V?11-16V allowable?
Input Draw	22 A
Dimensions	6-1/2 X '1-3/4 X '3-7/8 inch
