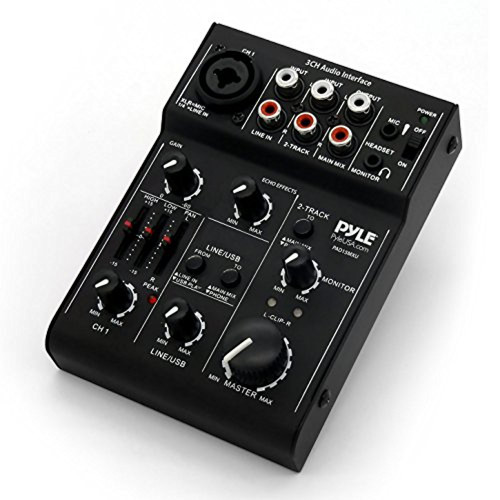

Pyle 3 Channel DJ Controller USB Audio / Sound Mixer Recording Interface with XLR and 3.5 mm Microphone Jack, Line In RCA, Rechargeable Battery, Mix Monitoring, for Professional / Beginners - PAD15MXU

The Pyle 3-Channel USB Audio/Sound Mixer Recording Interface is like a portable recording studio. It's perfect for computer-based audio editing while adding fine-tune adjustments to your sound. The mono input channel allows you to connect a (phantom-powered) microphone. At the XLR jack, a phantom power of +18V is always present. The stereo input channel allows you to connect an audio source with line signal level. In addition, the mixer is provided with connections for a recorder and headphones. The mixed signal is sent to the output via RCA jacks and the USB port. It is also possible to use the USB port as an input to transfer audio data from the computer to the mixer. When connecting the mixer to a computer, power is supplied via the USB connection.

Pyle Model : PAD15MXU

3-Ch Recording USB Mixer Audio Interface

3-Channel USB Audio/Sound Mixer Recording Interface with Built-in Rechargeable Battery

Features:

Flexible Connectivity for a Variety of External Devices

Ultra-Low Noise Design with High Headroom

Integrated Sound Card for Computer Recording Support

USB Interface: Connect to Mac / PC

Built-In Rechargeable Battery

Smooth Rotary-Style Faders for Mic/USB/Line/Master Controls

Extremely Musical 2-Band EQ & Pan, on Each Channel

Combo Microphone Jack Connector – XLR and 3.5mm

RCA (L/R) Stereo Input and Output Connectors

2-TK RCA (L/R) Input Connectors

Voice Echo Effect/Delay Feature

Audio Signal CLIP LED Indicator Lights

Input Selection / Control Buttons

Independent Channel + MASTER Volume Controls

Independent Channel Balance/High + Low Frequency Adjustment

Used for Beginner & Professional Sound Applications

Universal Digital Audio File Compatibility

What’s in the Box:

Mixer Interface

USB Cable

Wall Adapter

Technical Specs:

Phantom Power: +18V

Mic Sensitivity: 1.3mV/1.7KΩ(Gain max)

Ch.1 Sensitivity: 5mV/12KΩ(Gain max)

Ch. 2/3 Sensitivity: 260mV/16KΩ

2-TK: 300mV/22KΩ

Output Level: 5.8V max (MAIN; MONITOR)

Frequency Range: 20 -21000 Hz

T.H.D.: ≤0.05%

S/N Ratio: 81dB

EQ Range: Bass ±15dB/80Hz, High ±15dB/12kHz

Headphone impedance: ≥16Ω

USB Interface: SB 2.0, Windows 98SE+, Macc OS 9.1+

Rechargeable Battery: 3.7V Lithium Ion, 600mAh

Power Supply: USB, 5V/500mA (Type-B)

Dimensions (L x W x H): 3.97’’ x 5.31’’ x 1.77’’ - inches

The Pyle 3-Channel USB Audio/Sound Mixer Recording Interface is like a portable recording studio. It's perfect for computer-based audio editing while adding fine-tune adjustments to your sound. The mono input channel allows you to connect a (phantom-powered) microphone. At the XLR jack, a phantom power of +18V is always present. The stereo input channel allows you to connect an audio source with line signal level. In addition, the mixer is provided with connections for a recorder and headphones. The mixed signal is sent to the output via RCA jacks and the USB port. It is also possible to use the USB port as an input to transfer audio data from the computer to the mixer. When connecting the mixer to a computer, power is supplied via the USB connection.

842893100814

1 Year Manufacturer Warranty
