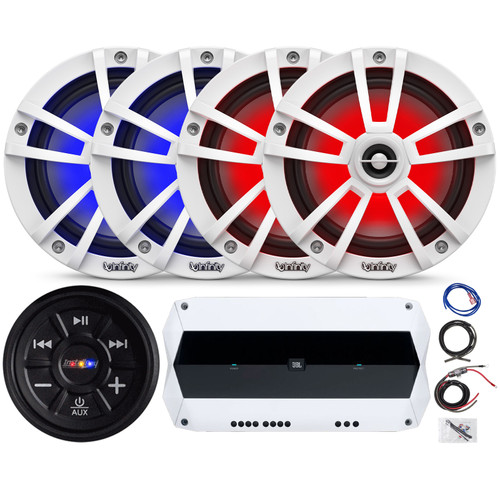

Metra IBR65 AUX Bluetooth Receiver, 4-Ch Amp,4x 6.5" 225W White RGB Speakers
Metra IBR65 Waterproof Flush Mount Bluetooth Audio Receiver with AUX Input
General Features:
- Aux input
- Waterproof design
- Remote turn on comes on when streaming media
- Independent volume and track controls
UPC Code 086429317202
Using a Class-D power plant, this amp features a variable bass boost with KickEQ™, giving you as much as 6dB of extra bump. Powering as many as eight speakers, this amplifier makes your entire boat sound like a floating concert! A powerful 12dB crossover is also included, letting you quickly tune your system to perfection. This KM-Series amplifier delivers 90 watts into four channels, or 180 watts bridged into two channels.
General Features:
- Class D Power Supply
- 500 Watts of Dynamic Power
- Four-Channel Amplifier with Bridging Capability
- Conformal-Coated Circuit Board
- Variable 12dB Crossover
- KickEQ Variable 6dB Bass Boost
- Real Marine ABYC/NMMA-Compliant Power Connections
- 316L Stainless-Steel Hardware Included
- POWER [watts/ch], 2 OHM STEREO: 90 x 4
- POWER [watts/ch], 4 OHM BRIDGED MONO: 180 x 2
- DYNAMIC POWER [watts]: 500
- DIMS [in] all models 2-5/16H x 7-1/8W x ___L: 12-7/16
- DIMS [cm] all models 5.9H x 18.0W x ___L: 31.5
- FREQUENCY RESPONSE [Hz]: 10-20k, +0/-1dB
- High Level Sensitivity: 250mV-10V
- Low Level Sensitivity: 125mV-5V
- SIGNAL-TO-NOISE RATIO: >95dB, a-weighted, re: rated power
- ACTIVE CROSSOVER: 12dB/octave, variable 50-200Hz, selectable high pass, low pass or all pass
- KickEQ BOOST Variable 0-6dB, centered @ 40Hz
UPC Code 713034020370
Infinity Reference Marine Speakers are ready to take on your next outdoor adeventure. These fully marinized speakers not only deliver Infinty sound, but they also feature RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structure, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropyelene cone and balanced dome tweeter provide great bass, smooth highs and lots of output to ensure every note can be heard loud and clear.
6.5" LED Speakers:
- 6.5" Two-Way Marine Multi-Element speaker
- Seven color multi-color RGB LED lighting
- Power Handling 75W RMS, 225W peak
- Sensitivity: 92dB
- Frequency Response: 50Hz- 20kHz
- Impedance: 4 ohms
- IPx5 Rated
Wiring Instructions
Lighting is controlled manually through hardwire connection. Remove the adapter at the end of the speakers to expose the wiring. It will include a Black, Red, Green and Blue wire. When hard wiring the RGB lighting, the black lead is +12V and the Red/Green/Blue leads are ground (-) There are seven colors available through hardwire connection, select your color of choice and proceed with wiring it.
- +12V = Black
- (-) Red = Red
- (-) Green = Green
- (-) Blue = Blue
- (-) Red + Green = Lime Green
- (-) Red + Blue = Magenta
- (-) Blue + Green = Aquamarine
- (-) Red + Blue + Green = Blue/White
UPC Code 050667372910
The Power Sport Motorcycle Universal Amplifier Wiring Kit includes the following 6 foot length of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder, 60 amp fuse protected by a black nylon braid, Pre-terminated ring terminals, (2) 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh and 4"x6" hook and loop mounting pad for micro-amplifiers.
Amplifier Wiring Kit:
- Designed tor motorcycles
- 6 feet of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder and 60 amp fuse protected by a black nylon braid
- Pre-terminated ring terminals make connections to the battery simple
- Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh makes upgrading the factory speaker wires or adding new speakers a smart choice
- Upgrading Harmon Kardon System – Two 47-ohm .5 watt resistors to keep the factory radio outputs active
- All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place
UPC Code 086429332267
