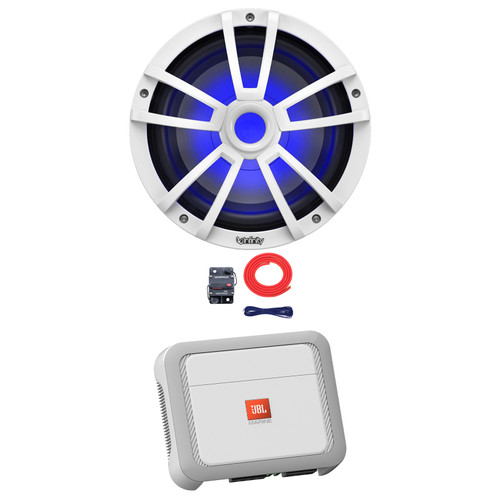

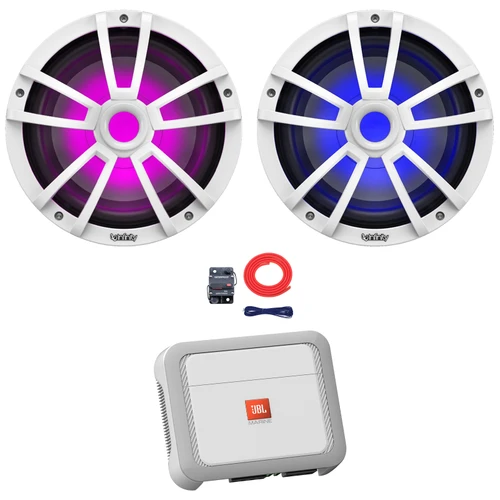

Infinity Reference 10" 750W Max RGB Marine Subwoofer, Mono Class D Amplifier
This Infinity Reference Marine Subwoofer is ready to take on your next outdoor adeventure. These fully marinized subwoofers not only deliver Infinity sound, but they also feature RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structure, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropyelene cone and balanced dome tweeter provide great bass, smooth highs and lots of output to ensure every note can be heard loud and clear.
General Features:
- IPx5 Marine Rating
- Cosmetic Appeal
- Outdoor Performance
- Multi-Color RGB Lighting
- Marine Design
- Bridge Mounted (Grille Mounted) Tweeters
- Balanced Dome Tweeters
- Weather-Resistant
- One-Piece Polymer Basket
- Rubber Surrounds
- Harman Standard Reliability Testing
- Individually Voiced
- Power Handling: 250W RMS, 750W peak
- Sensitivity (@ 2.83V): 89dB
- Frequency Response: 25Hz – 500Hz
- Impedance: 4 ohms
- Bulk Packaging
LED Wiring Instructions:
Lighting is controlled manually through hardwired connection. Remove the adapter at the end of the speakers to expose the wiring. It will include a Black, Red, Green and Blue wire. When hard wiring the RGB lighting, the black lead is +12V and the Red/Green/Blue leads are ground (-) There are seven colors available through hardwired connection, select your color of choice and proceed with wiring it.
- +12V = Black
- (-) Red = Red
- (-) Green = Green
- (-) Blue = Blue
- (-) Red + Green = Lime Green
- (-) Red + Blue = Magenta
- (-) Blue + Green = Aquamarine
- (-) Red + Blue + Green = Blue/White
UPC Code 050667372965
The JBL Marine A600 mono subwoofer amplifier delivers 600-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your Marine’s factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.
General Features:
- Mono subwoofer Marine amplifier
- 350 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
- Max Power 1200 watts
- Class D amp technology
- Variable low-pass filter (32-320 Hz, 12 dB/octave)
- Variable bass boost (0-12 dB at 45Hz)
- Phase switch (0, 180 degrees)
- Preamp and speaker-level inputs
- Fuse rating: 30A x 2
- 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- WxHxD=220mm x 51.3mm x 180mm WxHxD=8-11/16” x 2-1/16” x7-1/8”
UPC Code 050036396929
Power your marine amplifier with a wiring kit that can withstand the harsh environment and still deliver full sound performance. Fully tinned wiring ensures that these amp kits won’t corrode or oxidize and turn green after a season on the water. Oxygen-free copper provides a reliable connection with maximum conductivity. By using 100% virgin copper the tin won’t flake off, something commonly seen when using recycled copper materials. While it is also common to tin just the tips of the wire for cost savings, this practice does not actually provide any benefits. Metra’s amp kits use fully tinned copper wire from top to bottom that can withstand a harsh marine environment and salty air. The ignition-protected 50-amp circuit breaker is IP67 rated with stainless steel connection points for corrosion resistance
Amplifier Wiring Kit:
- Marine compliant amplifier wiring kit
- Fully tinned 100% virgin copper wire
- BC5W2 marine compliant jacket
- 50-amp marine circuit breaker is rated IP67 with stainless steel connection points for corrosion resistance
- Easy to solder tinned wiring
- Connectors, ring terminals, and wire ties included
What’s in the box:
- (1) 8-gauge tinned oxygen-free copper side-by-side red power and yellow ground wire (10ft.)
- (1) 18-gauge tinned oxygen-free copper blue remote turn-on wire (18ft.)
- (2) 8-gauge ring terminal with shrink tube and logo, pre-terminated on each end of the 2ft. red wire
- (1) 8-gauge ring terminal with shrink tube and logo, pre-terminated on 8ft. red wire
- (1) 8-gauge ring terminal with shrink tube and logo, pre-terminated on yellow wire
- (1) Ignition protected circuit breaker (50-amp)
UPC Code 086429416820
