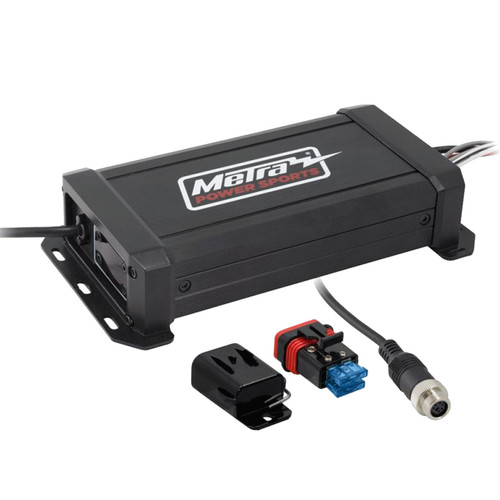

Metra MPSAMP1002D Universal PowerSports 2-Channel Class D Micro Amplifier

The Amp is bridgeable to provide more flexibility. The input side of the amplifier has an 8ft cable with an IP68 connector that is designed to plug directly into the MPS-BTK1 Bluetooth controller (sold separately). The amplifiers come with a pigtail that allows the user to use any radio or Bluetooth controller with an RCA output with these amplifiers if the MPS-BTK1 is not being used. The power cables are 8ft long with a waterproof fuse holder to reach any battery location whether it be in a side-by-side or motorcycle.

General Features:

• 100 WATTS RMS X 2 CHANNELS at 4 OHMS
• 150 WATTS RMS X 2 CHANNELS at 2 OHMS
• 300 WATTS RMS X 1 CHANNEL at 4 OHMS
• Adjustable 12db high pass/low pass crossovers
• CHIPSET – Full Range Class D using IR (International Rectifier) control chips
• PCB BOARD: 4 layer conformal coated
• WATER RESISTANCE: IPX6
• CROSSOVER POINTS: 40Hz to 500Hz
• T.H.D.: <0.2 %
• S/N RATIO (1 WATT at 4 OHMS):> 90db
• GAIN RANGE: .2 volts-5 volts
• FREQ RANGE: 20Hz-20KHz
• FUSE HOLDER: IP68 rated
• FUSING: 30 amp (Dual 15 AMP fuses)
• W 7.91in/201MM
• H 1.54in/39.2MM
• D 4.18in/106.4MM
